Instrument Cluster Design


Our client has a track car and wanted to replace the stock instrument cluster with the Haltech IC-7 digital display. There’s no way to simply mount the display so they hired Absolute3D to design a custom mount.

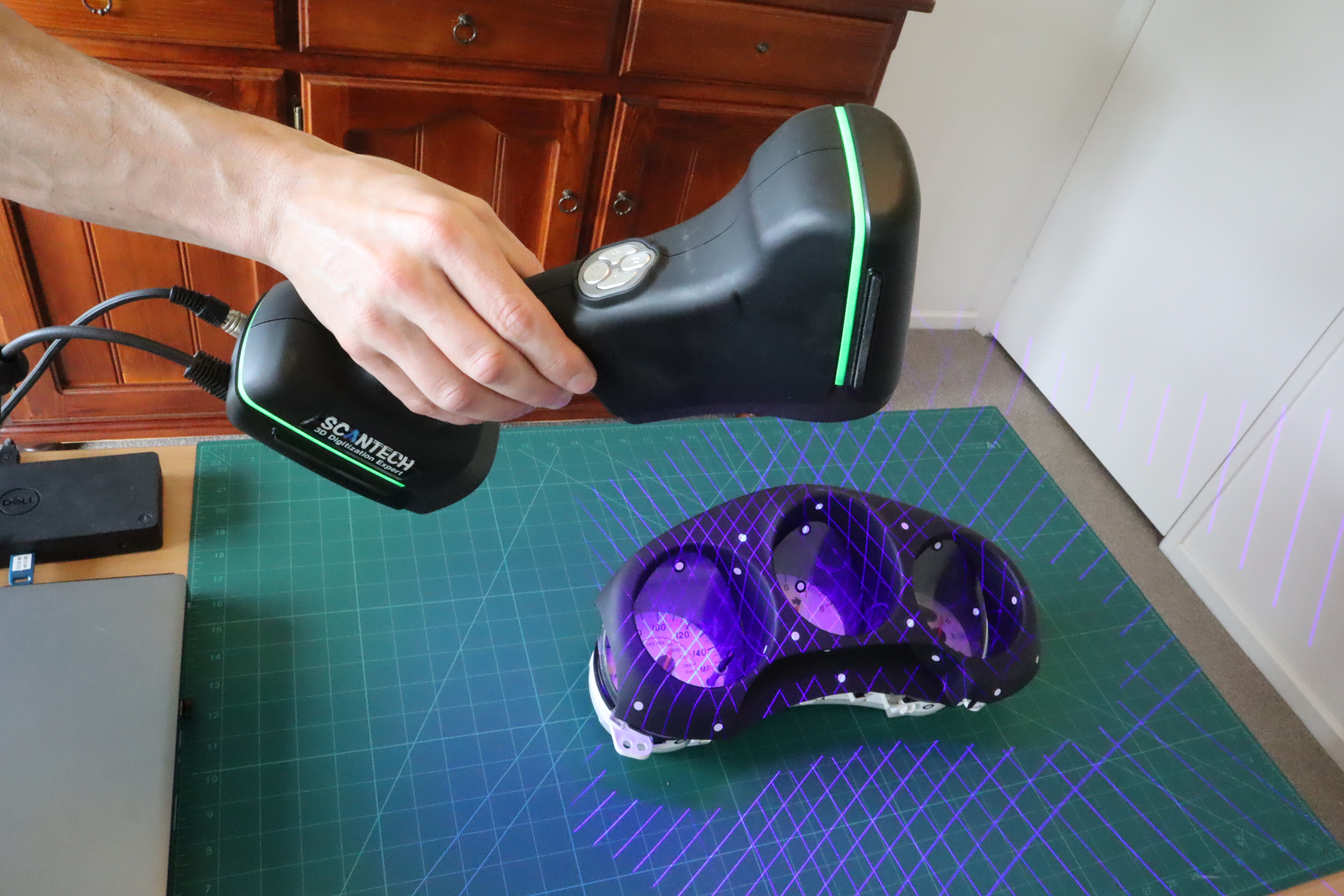

3D scanning original instrument cluster

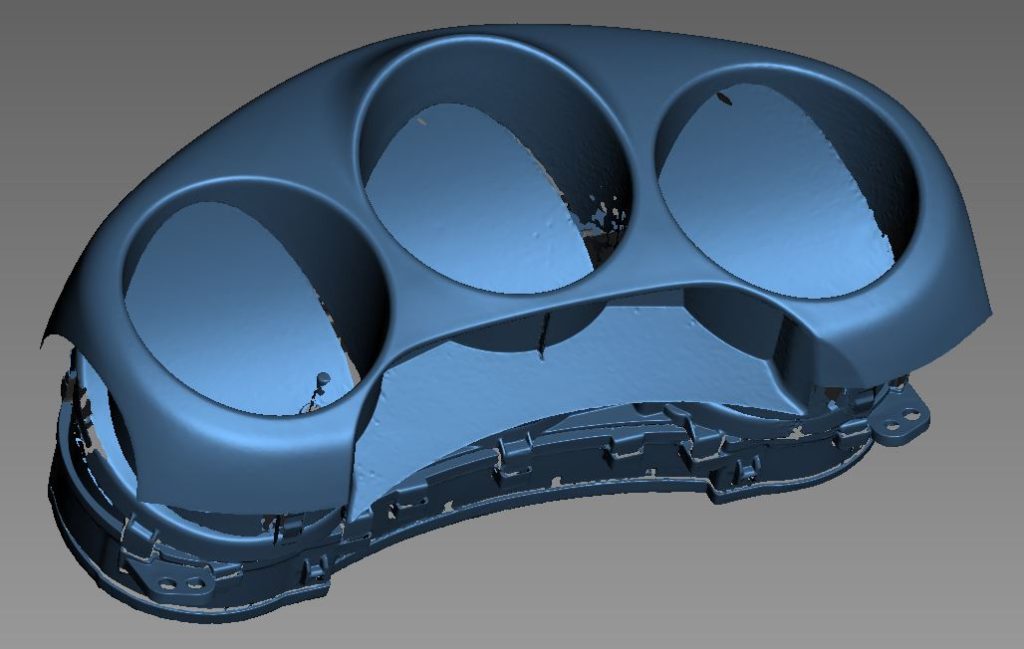

Scan mesh of original instrument cluster


We 3D scanned the stock instrument cluster and surround trim, followed by the Haltech display. We then aligned everything virtually and designed the mount. The CAD model and associated design files can be viewed in your browser using this link.

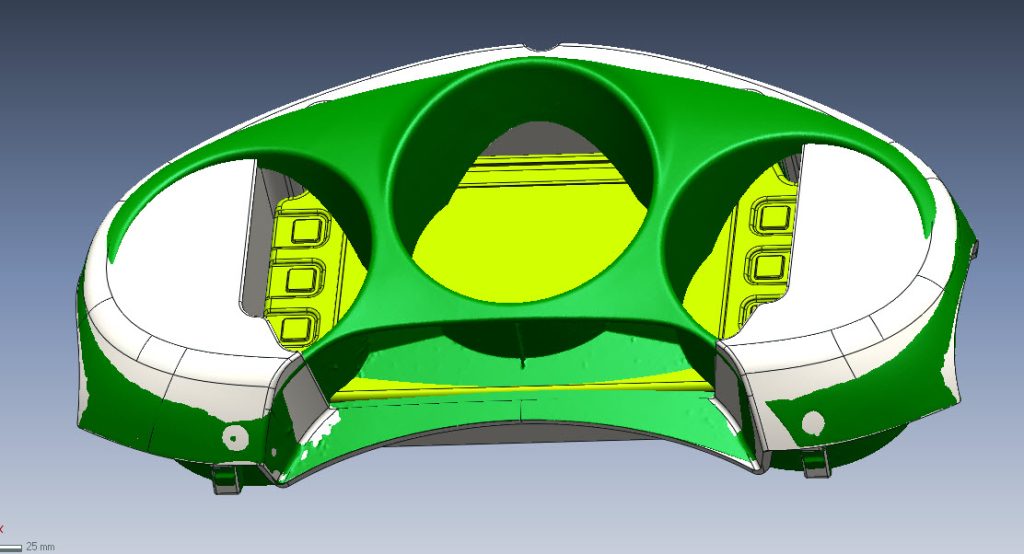

Scan mesh and CAD model aligned

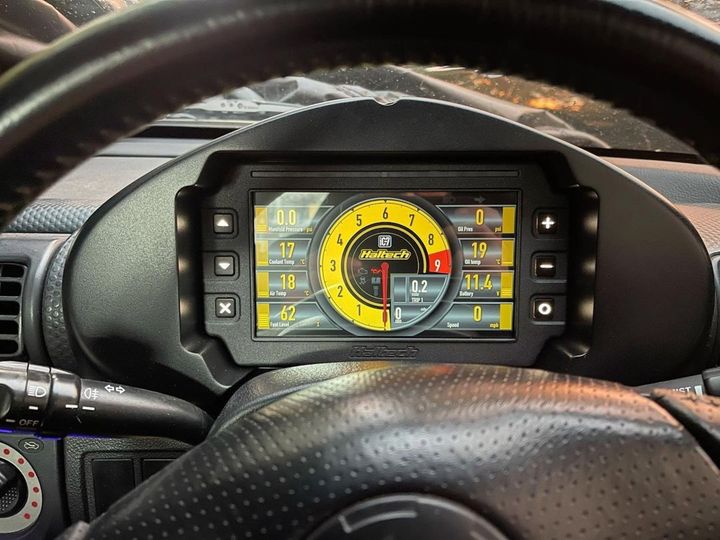

Finished product installed
